We are a professional industrial UAV solutions provider with more than 12 years of experience!

Our Main Solutions
1. Mapping, surveying and 3D modeling

2. Surveillance
3. Inspection
4. Delivery
5. Customization according to application and client's requirements

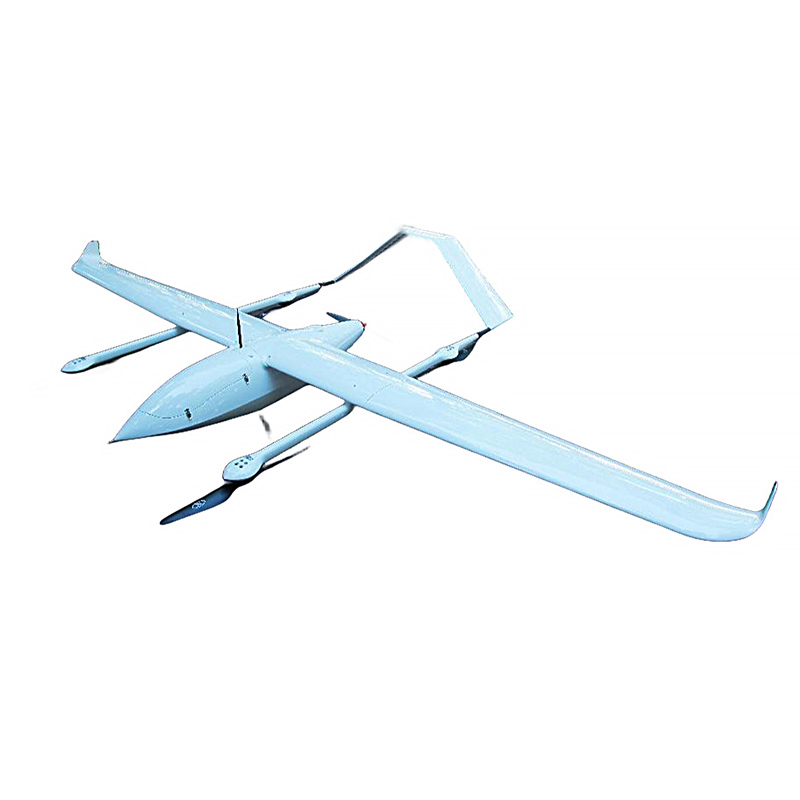

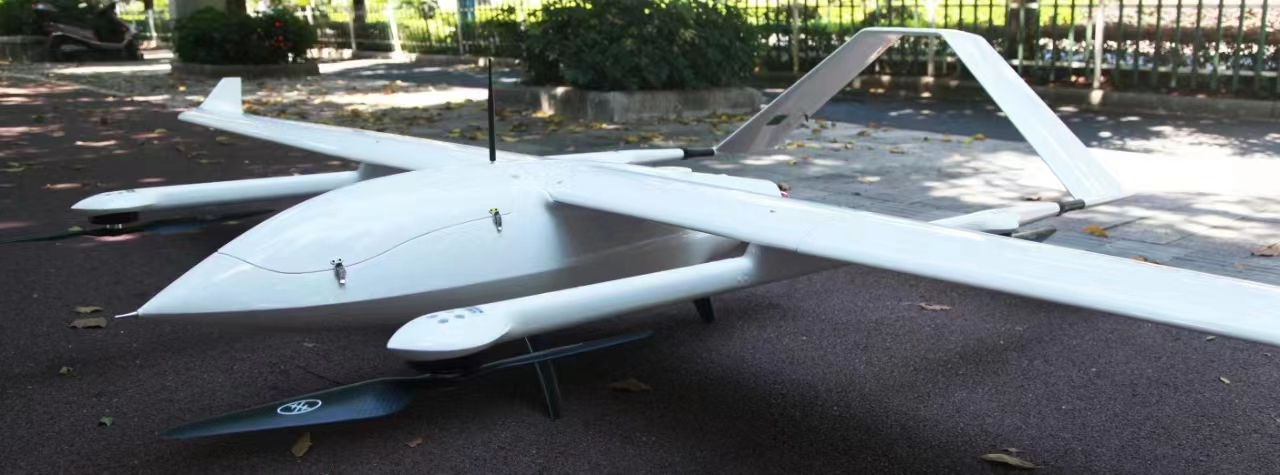

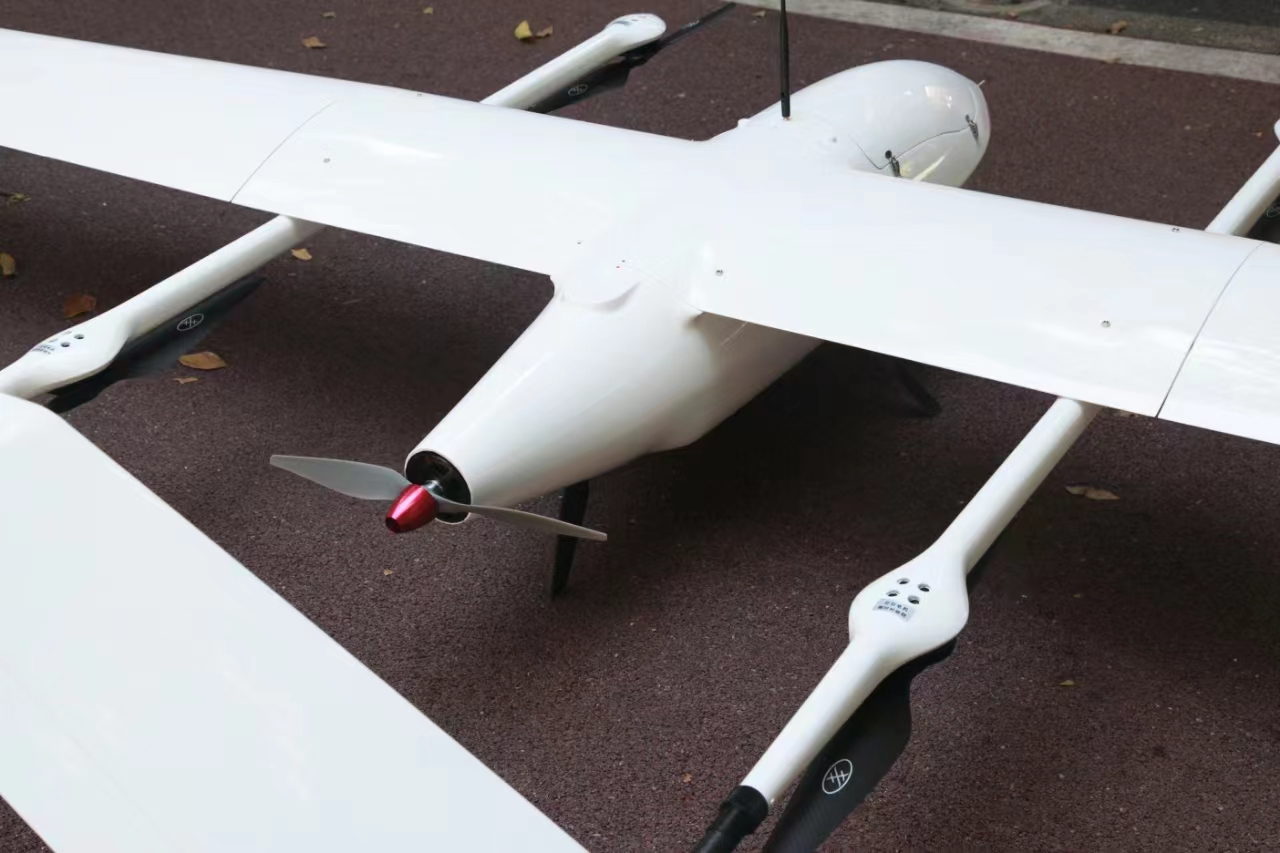

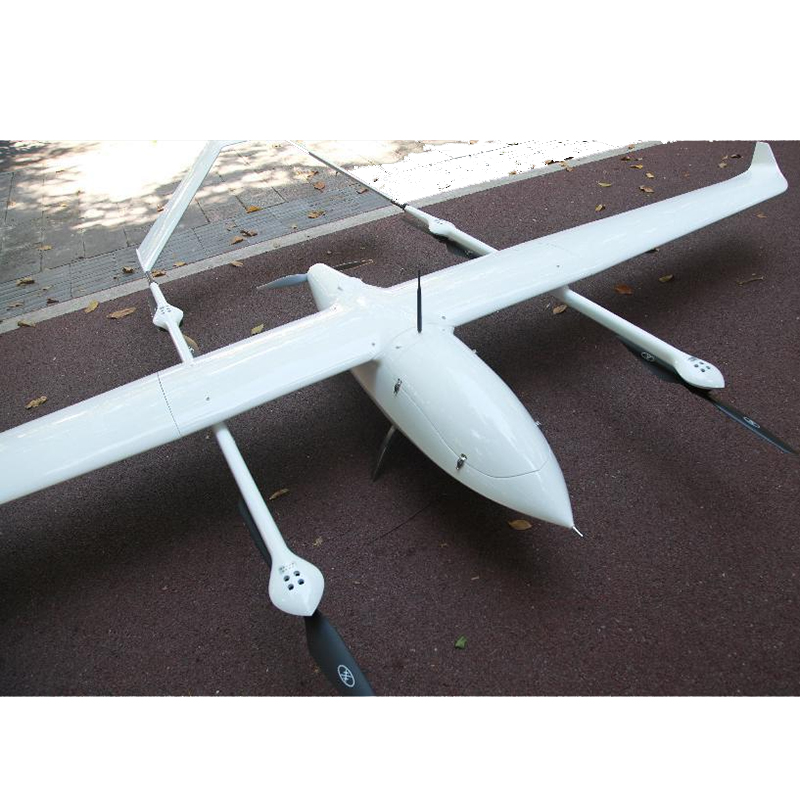

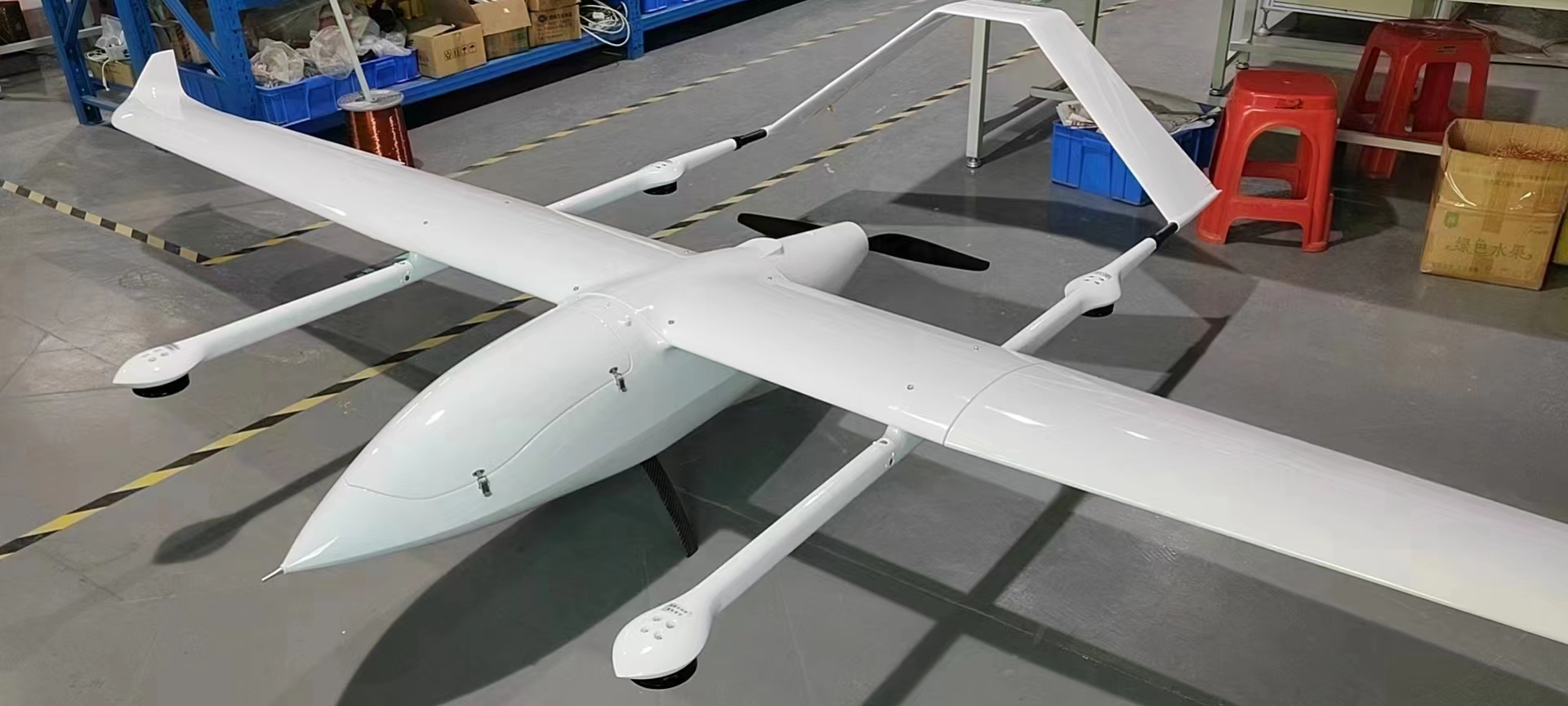

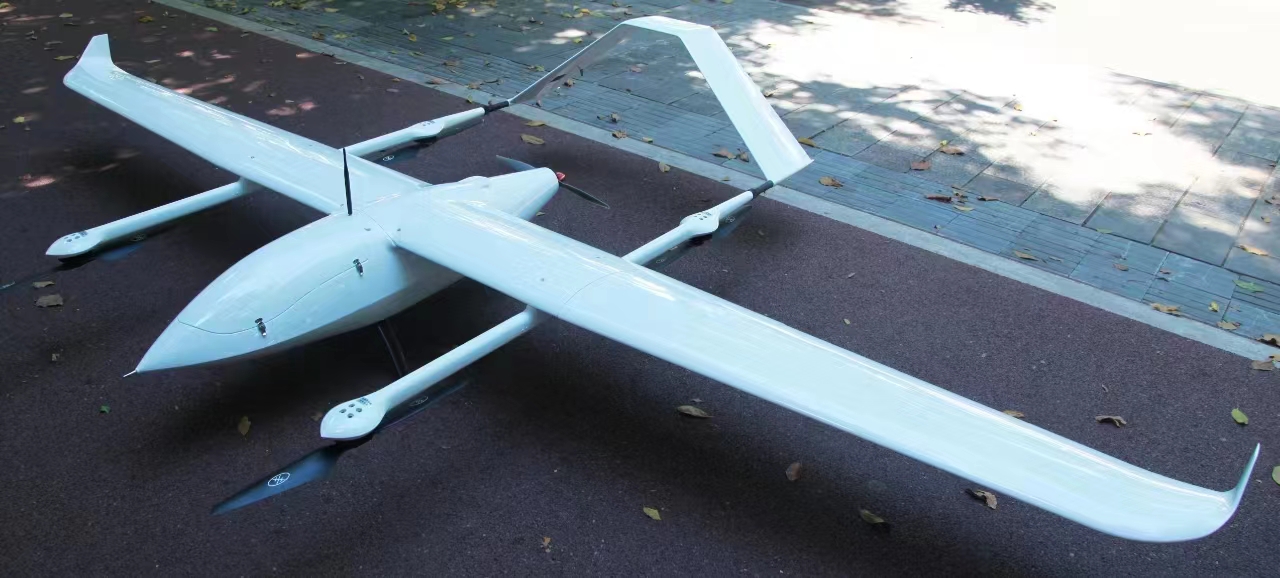

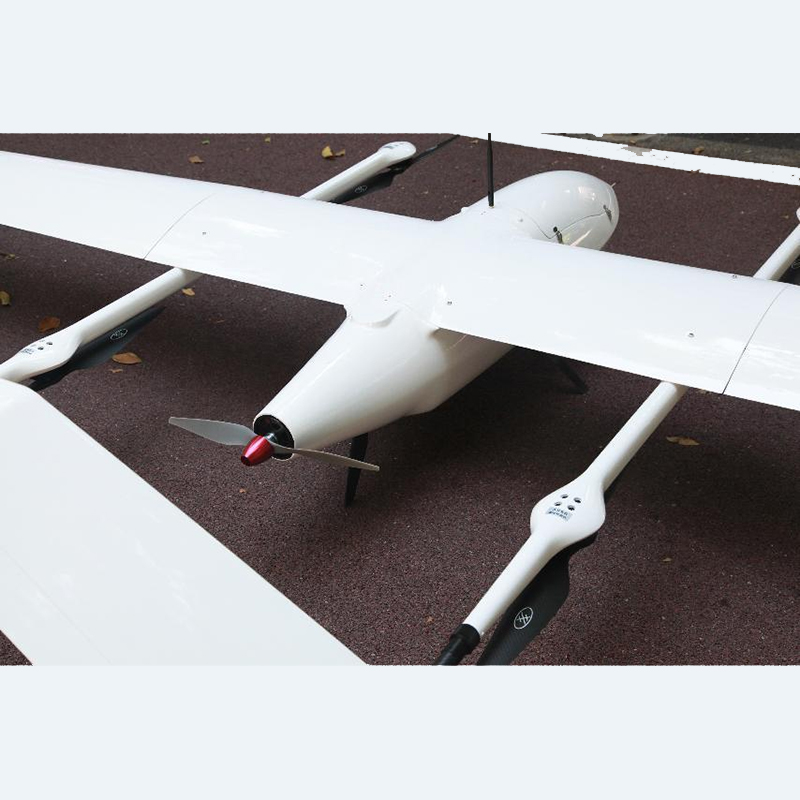

Below is the details of our JH-42:

Wingspan: 4210mm

Length: 2400mm

Height :650mm

Endurance: 6hours

Maximum take-off weight:35KG

Standard take-off weight: 34KG

Max playLoad: 10KG

Take-off and landing mode: automatic vertical take-off and landing

Maximum take-off height: 5500 m

Mission capsule size:length 395MM* width 300MM* height 270MM                                                Endurance: 5 hours/load 1KG;2 hours/load 6KG;1 hour/load 8KG

Cruising speed:22 m/s (low altitude)

Speed:23-35 m/s

Wind resistance grade:7 (cruise) 3 (vertical)

Waterproof class:IP34;

Working temperature:-20 degrees to 50 degrees

Power: 4+1 Full electric

Communication distance:more than 20 km (no shelter)
